Sliding Partition Wall Accordion Walls Room Divider

Sliding Partition Wall Accordion Walls Room Divider

Marchio:	AE
Numero di modello:	AE100
Moq:	10 metri quadrati
prezzo:	USD90-135Per Square Meter
Condizioni di pagamento:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Capacità di fornitura:	1000 metri quadrati al mese

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Guangdong, Cina

Certificazione:

ISO9001 SGS

Modello:

Pareti divisorie dell'esposizione

Applicazione:

Sala banchetti, sala conferenze

Materiale:

MDF, struttura in alluminio, tessuto

Dimensioni:

Personalizzazione (altezza: fino a 18 M, larghezza per pannello: fino a 1,2 M)

Progetto:

OEM e ODM

Isolamento acustico:

Max 56db

Imballaggi particolari:

strato di schiuma e cartone duro con custodia in compensato o pallet in acciaio

Evidenziare:

sliding partition wall room divider

accordion walls for exhibitions

portable exhibition partition walls

Descrizione del prodotto

Engineered Movable Partitions with Advanced Sealing System

Our movable partition walls are built for performance and durability. Featuring a robust internal Q235 steel frame and 6061-T6 aluminum profiles, panels are available in 68mm, 89mm, and 105mm thicknesses. The core of our system is an advanced sealing mechanism, with a jack lifting system that provides 800N of sealing force and magnetic seals offering 40N/m attraction. Operation is smooth and reliable thanks to precision CNC-machined 304 stainless steel rollers and a patented wheel design. We provide full submittal drawings and value-engineered alternatives for any project.

SPECIFICATION:

GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSONAL SPACE SOLUTIONS
	Dimensions in mm*			Design
Series	Element thickness	Element width* (min./max.)	Clear height* (min./max.)	Framed construction	Panel fixing	Element interconnection/design of the vertical profiles
AE65	68	600/1,250	2,000/4,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE85	89	600/1,250	2,000/5,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE100	105	600/1,250	2,000/18,000	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
Technology: Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB):52/56 Positive and frictional locking of the vertical element connections: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m * Larger widths possible on application. Provisional details regarding the element heights/element widths indicated can only be confirmed following consultation with the Design Department. ** Depending on the sound insulation/weight

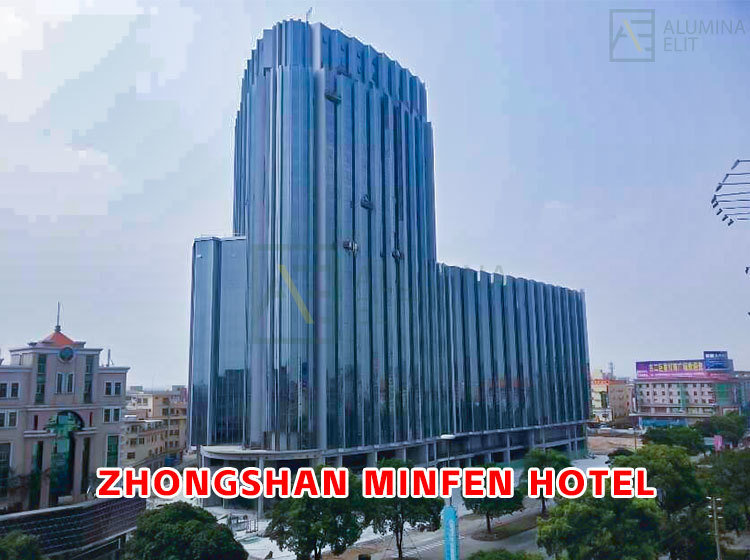

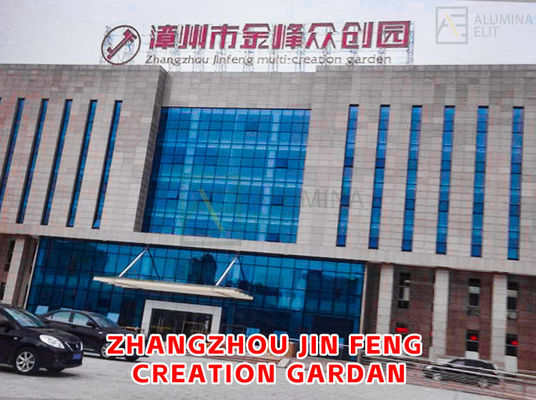

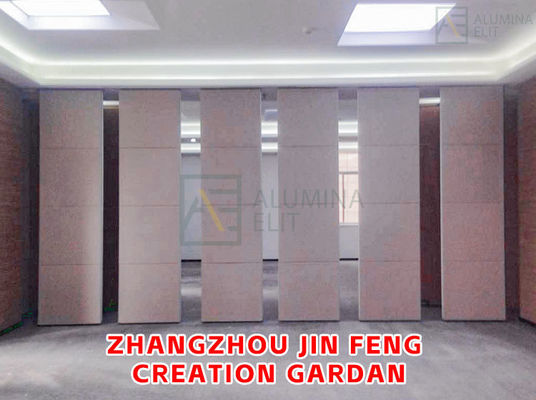

PROJECT:

Sliding Partition Wall Accordion Wall
