Dettagli dei prodotti

Casa prodotti

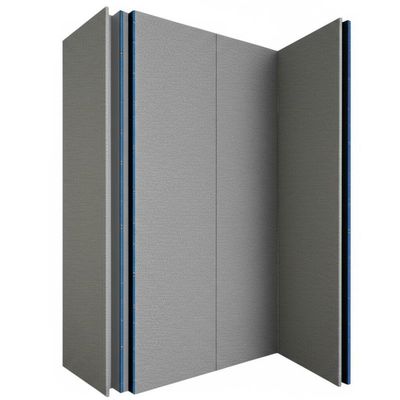

Fireproofing Acoustic Partition Wall with Magnetic Seal and SGS & ILAC-MRA Certified Customer-supplied Materials

Marchio:	AE
Numero di modello:	AE85
Moq:	10 metri quadrati
prezzo:	USD 80-108 Per Square Meter
Condizioni di pagamento:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Capacità di fornitura:	1000 metri quadrati al mese

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Guangdong, Cina

Certificazione:

ISO9001 SGS

Modello:

Pareti divisorie

Conformità:

Ristorante, sala riunioni

Materiale del pannello:

Materiali forniti dal cliente

Altezza:

Fino a 6m

Isolamento acustico:

Massimo 52 dB

Spessore della parete:

89cm

Imballaggi particolari:

strato di schiuma e cartone duro con custodia in compensato o pallet in acciaio

Evidenziare:

Magnetic Seal Acoustic Partition Wall

Customer-supplied Materials Operable Partition Wall

SGS & ILAC-MRA Certified Movable Partition Wall

Descrizione del prodotto

Conference Room Acoustic Sliding Wall Fireproofing Operable Partition Wall Dividers

Conference Room Folding Movable Partition Acoustic Sliding Walls Fireproofing Operable Partition Dividers

AE Partition has completed projects in the UK, Germany, Belgium, Tatarstan, US etc. Intelligent solutions for flexible space utilization, whether sound insulated or transparent - our movable walls with flexible partitions enable efficient space utilization for almost any configuration.

Advantages:

Experience in doing project with heavy customers
Delivery time control for decent orders
Designing team for new products & solutions development
The performance of the product is certified by SGS & ILAC-MRA

Roller Option & Feature

Dupont POM roller
304 stainless steel heavy duty roller with safety device & CNC machining
Unique and patented wheel surface and shape make the whole movable partition easy to use

Panel Option & Feature

Thickness: 68mm & 89mm & 105mm
Wide variety of acoustical and decorative finishes available
6061-T6 profile and inside Q235 steel frame for superior durability
Top & bottom jack lifting mechanism seal are with power of 800N. Magnetic seal in concave & convex profile has magnetic attraction of 40N/m

Specification:

GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSIONAL SPACE SOLUTIONS

Series	Element thickness	Element width* (min./max.)	Clear height* (min./max.)	Framed construction	Panel fixing	Element interconnection/design of the vertical profiles
AE65	68	600/1,250	2,000/4,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE85	89	600/1,250	2,000/5,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE100	105	600/1,250	2,000/18,000	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips

Technology:
Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB):52/56
Positive and frictional locking of the vertical element connections: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m
* Larger widths possible on application. Provisional details regarding the element heights/element widths indicated can only be confirmed following consultation with the Design Department.
** Depending on the sound insulation/weight
