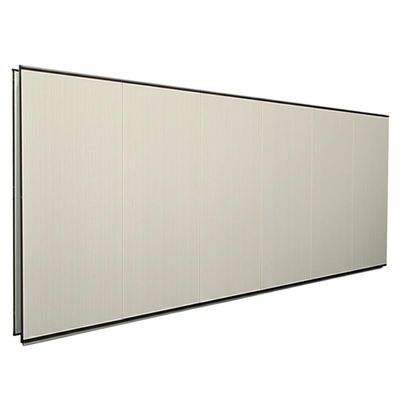

Mobile Acoustic Partition Wall with MDF Melamine and Magnetic Seal for OEM & ODM Design

Marchio:	AE
Numero di modello:	AE100
Moq:	10 metri quadrati
prezzo:	USD 80-108 Per Square Meter
Condizioni di pagamento:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Capacità di fornitura:	1000 metri quadrati al mese

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Guangdong, Cina

Certificazione:

ISO9001 SGS

Nome del prodotto:

Pareti divisorie acustiche

Materiale:

MDF con la melammina

Opzione di finitura:

Materiali forniti dal cliente

Altezza:

Fino a 18M

Progetto:

OEM e ODM

Isolamento acustico:

Max 56db

Imballaggi particolari:

strato di schiuma e cartone duro con custodia in compensato o pallet in acciaio

Evidenziare:

MDF Melamine Acoustic Partition Wall

OEM Design Movable Partition Wall

Magnetic Seal Sliding Partition Wall

Descrizione del prodotto

Mobile Acoustic Partition Wall Floor To Ceiling Room Partitions For Classroom

Movable acoustic partition walls offer a sophisticated and flexible solution for dividing spaces while complementing the architectural design of any environment. These partitions consist of multiple individual panels that glide effortlessly along a horizontal ceiling-mounted track, eliminating the need for floor guides. The panels are easy to handle, install, and adjust, ensuring a safe and efficient operation. The primary benefit of soundproof sliding walls lies in their space-saving design: they occupy minimal space when retracted and provide a complete, seamless wall when fully assembled.

Key Features

Flexible Adjustment: Easily expand or retract the partition to meet varying needs with minimal effort.
Efficient Storage: Designed for convenient preservation and storage, making it practical for any space.
Superior Insulation: Provides excellent soundproofing and thermal insulation, enhancing comfort and privacy.
Modern Design: Stylish and contemporary, it seamlessly integrates into any setting while adding a decorative touch.
Robust Stability: Engineered for stability, ensuring the partition remains securely in place without shifting.

Roller Options & Features

Dupont POM roller
304 stainless steel heavy duty roller with safety device & CNC machining
Unique and patented wheel surface and shape make the whole movable partition easy to use

Panel Options & Features

Thickness: 68mm, 89mm & 105mm options available
Wide variety of acoustical and decorative finishes available
6061-T6 profile and inside Q235 steel frame for superior durability
Top & bottom jack lifting mechanism seal with power of 800N
Magnetic seal in concave & convex profile has magnetic attraction of 40N/m

Technical Specifications

Series	Element Thickness	Element Width* (min/max)	Clear Height* (min/max)	Framed Construction	Panel Fixing	Element Interconnection
AE65	68mm	600/1,250mm	2,000/4,500mm	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE85	89mm	600/1,250mm	2,000/5,500mm	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE100	105mm	600/1,250mm	2,000/18,000mm	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips

Technology: Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB):52/56
Positive and frictional locking: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m
* Larger widths possible on application. Provisional details regarding the element heights/element widths indicated can only be confirmed following consultation with the Design Department.
