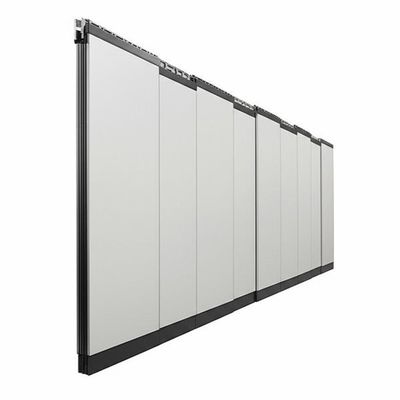

Folding Acoustic Partition Wall with Retractable Seals and Concealed Panel Edge Profiles for Customizable Finishes

Marchio:	AE
Numero di modello:	AE85
Moq:	10 metri quadrati
prezzo:	USD 80-108 Per Square Meter
Condizioni di pagamento:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Capacità di fornitura:	1000 metri quadrati al mese

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Guangdong, Cina

Certificazione:

ISO9001 SGS

Nome del prodotto:

Pareti divisorie acustiche pieghevoli

Applicazione:

Hotel, Sala banchetti

Opzione di finitura:

Materiali forniti dal cliente

Altezza:

Fino a 18M

Progetto:

OEM e ODM

Isolamento acustico:

Max 56db

Imballaggi particolari:

strato di schiuma e cartone duro con custodia in compensato o pallet in acciaio

Evidenziare:

Retractable Seals Acoustic Partition Wall

Concealed Panel Edge Profiles Operable Partition Wall

Customizable Finishes Folding Partition Wall

Descrizione del prodotto

Exhibition Hall Acoustic Partition Wall Folding Operable Partition Wall

An acoustic wall partition is a versatile solution for dividing spaces, allowing you to easily transform a large area into smaller rooms or expand a small space as needed. It combines the functionality of a standard wall with the flexibility of an operable partition, making it ideal for multi-purpose environments.

These partitions are designed for straightforward installation and offer dependable performance. They are manufactured with industrial precision and prioritize safety with features like fire resistance and eco-friendly materials.

Acoustic Partition Wall Features:

Top hung system without the need for a floor track
Retractable top and bottom seals ensure effortless movement of panels
Concealed or exposed panel edge profiles
Numerous panel stacking options for complete flexibility
Extensive range of surface finishes available, easy construction and transportation
The system offers various levels of sound reduction
Combines elegance with robust construction
Allow customization

Roller Options & Features:

Dupont POM roller
304 stainless steel heavy duty roller with safety device & CNC machining
Unique and patented wheel surface and shape make the whole movable partition easy to use

Panel Options & Features:

Thickness: 68mm & 89mm & 105mm
Wide variety of acoustical and decorative finishes available
6061-T6 profile and inside Q235 steel frame for superior durability
Top & bottom jack lifting mechanism seal are with power of 800N
Magnetic seal in concave & convex profile has magnetic attraction of 40N/m

Specifications:

GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSIONAL SPACE SOLUTIONS

Dimensions in mm*	Design Series	Element thickness	Element width* (min./max.)	Clear height* (min./max.)	Framed construction	Panel fixing
AE65	68	600/1,250	2,000/4,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE85	89	600/1,250	2,000/5,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE100	105	600/1,250	2,000/18,000	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips

Technology: Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB):52/56

Positive and frictional locking: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m

* Larger widths possible on application. Provisional details regarding the element heights/element widths indicated can only be confirmed following consultation with the Design Department.

** Depending on the sound insulation/weight
