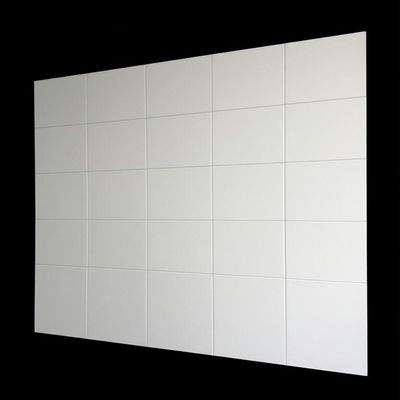

Soundproof Portable Movable Partition Wall with STC Rating 42-56dB and Customizable Dimensions up to 18M Height

Marchio:	AE
Numero di modello:	AE100
Moq:	10 metri quadrati
prezzo:	USD 90-135 Per Square Meter
Condizioni di pagamento:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Capacità di fornitura:	1000 metri quadrati al mese

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Guangdong, Cina

Certificazione:

ISO9001 SGS

Nome del prodotto:

Pareti pieghevoli scorrevoli

Materiale:

Aluminio + Legno

Conformità:

Sala riunioni, scuola

Spessore:

105 cm

Classificazione STC:

42-56 dB

Dimensioni:

Personalizzazione (altezza: fino a 18 M, larghezza per pannello: fino a 1,2 M)

Imballaggi particolari:

strato di schiuma e cartone duro con custodia in compensato o pallet in acciaio

Evidenziare:

STC Rating 42-56dB Movable Partition Wall

Up to 18M Height Portable Partition Wall

Customizable Dimensions Sliding Folding Walls

Descrizione del prodotto

Soundproof Portable Partition Walls, Sliding Folding Walls Movable

Design Portable Movable Partition Wall Sliding Folding Walls

In today's architectural landscape, there is a growing demand for flexibility and efficiency in room utilization. Our movable partitions provide the ideal solution for creating adaptable spaces with excellent soundproofing capabilities.

Our products are extensively employed in diverse settings including:

Hotel banquet halls and meeting rooms
Exhibition halls and conference centers
KTV lounges and upscale restaurants
Office buildings, schools, and hospitals

High-Quality Service Commitment

SGS and ILAC-MRA certified products ensuring reliable performance
Combining leading German partition technology for global professional space solutions
Extended product lifespan with long-term performance stability
Quick follow-up and transparent quoting services
On-site inspection services for quality assurance
Punctual delivery to ensure smooth project progress

Unique Roller Options & Features

Dupont POM rollers for optimal performance
304 stainless steel construction with heavy-duty capabilities
Precision CNC machining with safety features
Patented wheel design for effortless operation

Technical Specifications

GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSIONAL SPACE SOLUTIONS

Series	Element thickness (mm)	Element width* (min./max. mm)	Clear height* (min./max. mm)	Framed construction	Panel fixing	Element interconnection
AE65	68	600/1,250	2,000/4,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE85	89	600/1,250	2,000/5,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE100	105	600/1,250	2,000/18,000	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips

Technology: Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB): 52/56

Element connections: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m

* Larger widths possible on application. Provisional details regarding the element heights/element widths indicated can only be confirmed following consultation with the Design Department.
