Acoustic Sliding Partition Wall with 56dB Sound Insulation for Banquet Halls and Conference Rooms

Acoustic Sliding Partition Wall with 56dB Sound Insulation for Banquet Halls and Conference Rooms

Marchio:	AE
Numero di modello:	AE100
Moq:	10 metri quadrati
prezzo:	USD90-135Per Square Meter
Condizioni di pagamento:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Capacità di fornitura:	1000 metri quadrati al mese

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Guangdong, Cina

Certificazione:

ISO9001 SGS

Modello:

Pareti divisorie dell'esposizione

Applicazione:

Sala banchetti, sala conferenze

Materiale:

MDF, struttura in alluminio, tessuto

Dimensioni:

Personalizzazione (altezza: fino a 18 M, larghezza per pannello: fino a 1,2 M)

Progetto:

OEM e ODM

Isolamento acustico:

Max 56db

Imballaggi particolari:

strato di schiuma e cartone duro con custodia in compensato o pallet in acciaio

Evidenziare:

56dB Sound Insulation Sliding Partition Wall

Banquet Hall Sliding Partition Wall

Conference Room Sliding Partition Wall

Descrizione del prodotto

Flexi Walls Sliding Partition Wall System Foldable

Solve Your Space Division Challenges with Acoustic Movable Walls

Struggling with inflexible layouts and noise bleed in your venue? Our acoustic movable partition walls provide the definitive solution. We create versatile, sound-insulated zones perfect for multi-function halls and hotels. Our manually operated system is designed for rapid adaptation, allowing you to host multiple events simultaneously in complete privacy. With our extensive project experience and ability to provide cost-effective alternatives, we solve your space and budget challenges without compromising on quality or performance.

Specifications

GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSIONAL SPACE SOLUTIONS

Series	Element thickness (mm)	Element width* (min./max. mm)	Clear height* (min./max. mm)	Framed construction	Panel fixing	Element interconnection/design of the vertical profiles
AE65	68	600/1,250	2,000/4,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE85	89	600/1,250	2,000/5,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE100	105	600/1,250	2,000/18,000	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips

Technology: Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB):52/56

Positive and frictional locking: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m

* Larger widths possible on application. Provisional details regarding the element heights/element widths indicated can only be confirmed following consultation with the Design Department.

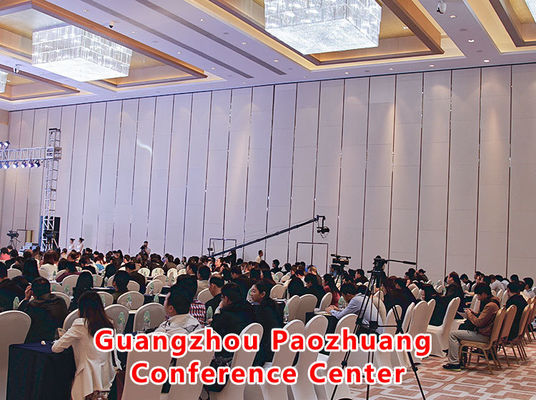

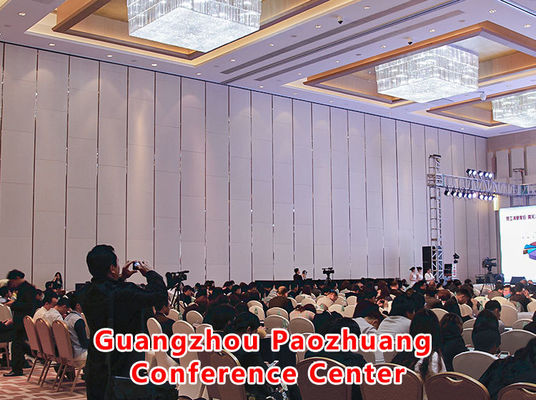

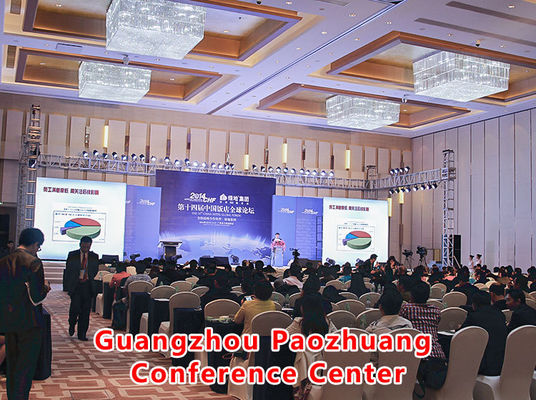

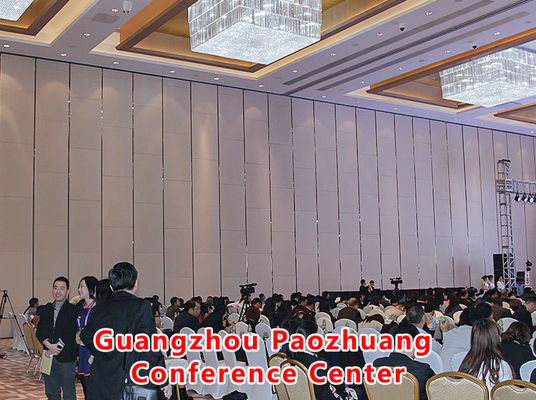

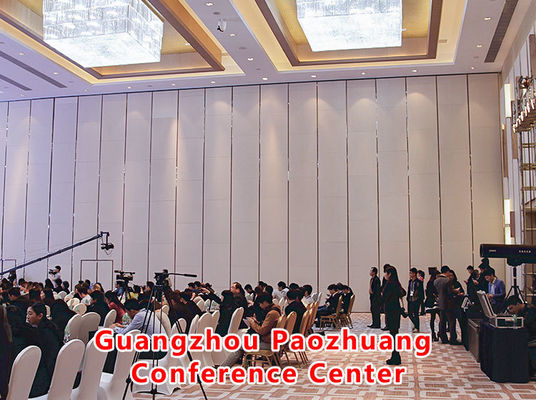

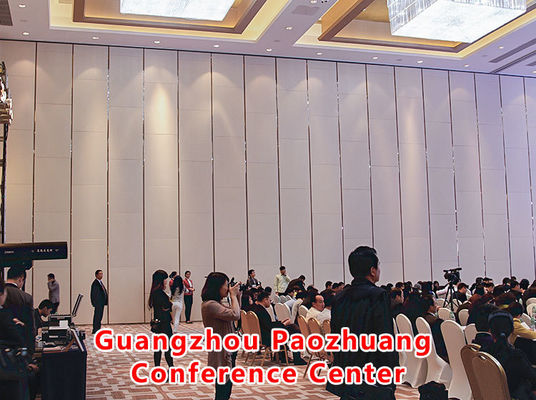

Project Gallery
